Foil Drive Assist MAX
Vanaf €5075,
Shipped within 24 hoursDelivery time
Ordered before 4:00 PM? We'll do our best to ship this item the same day. If this isn't possible, the item will be shipped within 24 hours at the latest.
Once your order has been shipped, you will receive a shipping confirmation by email with a track & trace code. The delivery service will then take over. You will usually receive your order within 1-2 business days, but sometimes it can take longer than usual to arrive! Unfortunately, we have no influence on that.
Delivery options
PostNL: Delivered at home or at work, during the week and on Saturdays.
Collection: By appointment, also possible in the evenings and on weekends.
Ordered before 4:00 PM? We'll do our best to ship this item the same day. If this isn't possible, the item will be shipped within 24 hours at the latest.
Once your order has been shipped, you will receive a shipping confirmation by email with a track & trace code. The delivery service will then take over. You will usually receive your order within 1-2 business days, but sometimes it can take longer than usual to arrive! Unfortunately, we have no influence on that.
Delivery options
PostNL: Delivered at home or at work, during the week and on Saturdays.
Collection: By appointment, also possible in the evenings and on weekends.
Foil Drive battery choice
Foil Drive motor choice
Additional options
1 × Foil Drive Three Blade Propeller Hub and Rotor Bundle
€496,00
Available on backorder
1 × Foil Drive Propeller Guard
€114,50
Available on backorder
1 × Foil Drive Inline Battery Checker - 28v
€34,50
In stock
1 × Foil Drive Inline Battery Checker - 40v
€34,50
Available on backorder
In stock

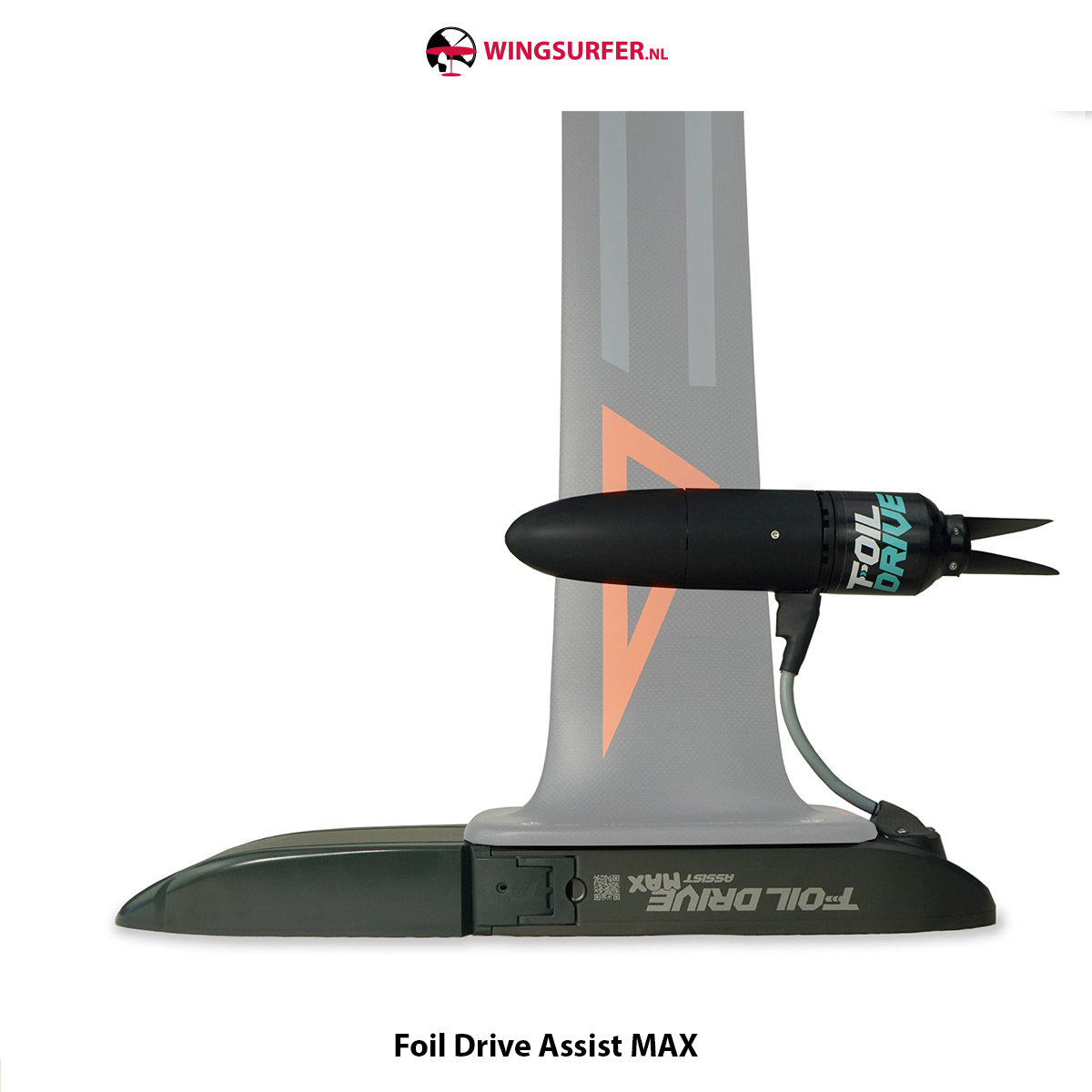

Foil Drive Max base kit, with additional choices to complete your Foil Drive Max.
The Foil Drive Assist MAX has a unique, ingenious and compact design. With this system you can turn any foil setup into an electric hybrid foil. The MAX is so powerful that you can also use your setup as a full e-foil, even though the foil drive is designed as a ‘foil assist’. How long the battery lasts depends entirely on your weight, the foil and the board. When used as a supporting function, you can play outside for hours on 1 battery charge.
Battery choice:
With the MAX High power battery you have the most power and runtime at your disposal.
The MAX Power battery has enough power for foils above 1000cm2.
The MAX Sport battery has enough power for foils above 1000cm2, but has a shorter runtime. It is lighter.Only the Max Travel Battery can usually be taken on the plane. (see airline conditions)

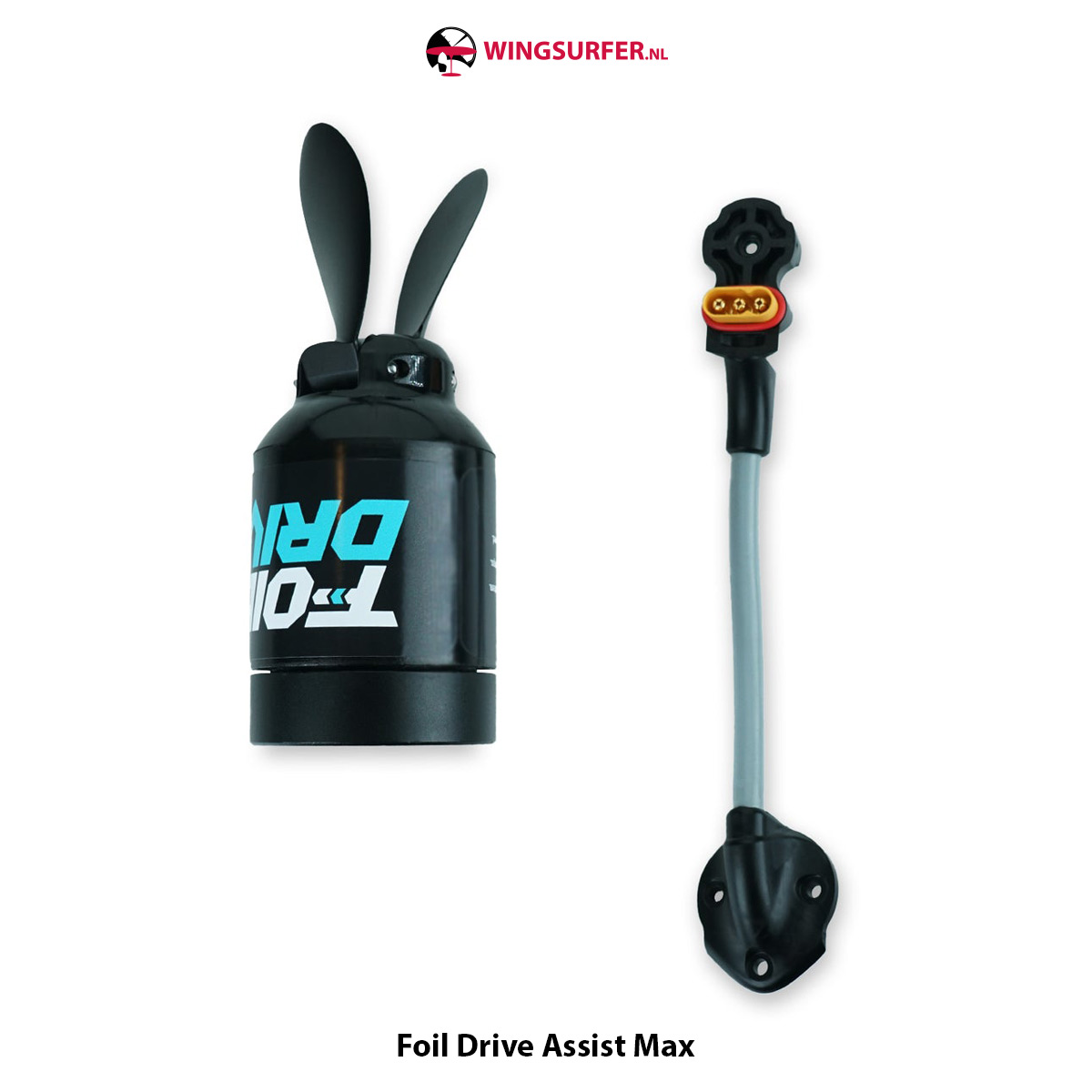

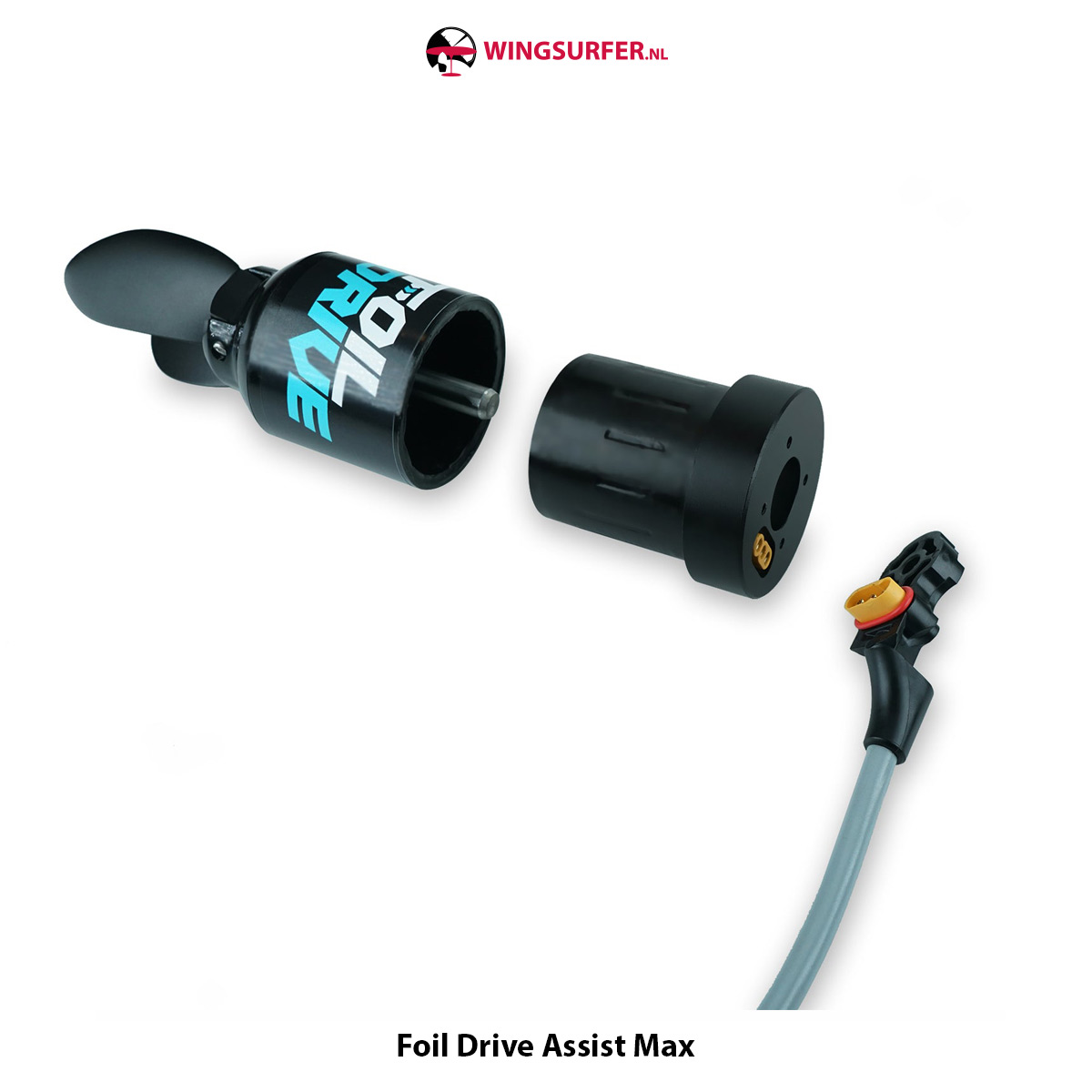

Motor choice:
Standard v2 motor – complete with 2 propellers (3 propeller upgrade optional)
High power v2 motor – complete with 2 propellers (3 propeller upgrade optional)
Cable length selection:
When using as a foil assist, 20cm is recommended for those new to the Foil Drive. This is included as standard.
When using as an e-foil, a cable length of 60 or 70cm is recommended. However, this will require a lot of cable to be routed along the mast. An integrated mast with cable is easier in this case.
Every Foil Drive comes with a universal mast adapter. This fits all different brands of masts.
Battery delivery:
Only delivery in most EU countries (mainland) and not on islands except, Ireland.
Fast delivery
If you order a product available from stock* before 4 p.m., we will ship your order within 24 hours! Then the delivery service takes over. We aim for fast delivery.
First wing & foilshop
We immediately saw the full potential (and fun) of this sport and we are the first pure wing & foil shop in the Netherlands.
Service-oriented
In the unlikely event that something goes wrong, we will solve it as quickly and professionally as possible.
Description
The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!
The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine!
Simply choose your desired:
- MAX Battery
- Gen2 Motor
- Cable length
The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!
What’s included with a Foil Drive Assist MAX kit
INCLUDED IN BASE KIT IS:
Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod – Rear
Foil Drive Universal Motor Pod – Short Nose
Foil Drive Universal Motor Pod – Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag
– 4x M8 Locking Tee Nuts
– 4x M6 Locking Tee Nuts
– 4x M3 x 20mm Bolts for Locking Tee Nuts
– 2x M3 x 16mm Latch Locking Bolts
Foil Drive Motor and Pod Bolts Bag
– 4x Motor Pod Bolts (M3 x 12mm)
– 3x Puck Bolts (M3 x 12mm)
– 3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag
– 2x O-Ring Seals – Foil Drive Assist MAX
– 2x Latch Assembly – Foil Drive Assist MAX
– 3x Motor Plug Bolts (M3 x 12mm)
– 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
– 2x Latch Locking Bolts (M3 x 16mm)
– 2x Propeller Bolts (M3 x 30mm)
– 2x Latch Pivot Bolts (M3 x 45mm)
Foil Drive Assist MAX compatible with
MAX High Power Battery
MAX Power Battery
MAX Sport Battery
Universal Motor Systems for Gen2
Integrated Masts
Foil Drive Assist MAX tech specs
Max Thrust: 27.5kg (60.6lbs)
Total Install Weight: 4.8-5.8kg (10.5-12.7lbs)
Dimensions with Long A Nose Cone: L525 x W125 x H50mm
Dimensions with Short B Nose Cone: L415 x W250xH50mm
App compatibility: Foil Drive app, Android and IOS
